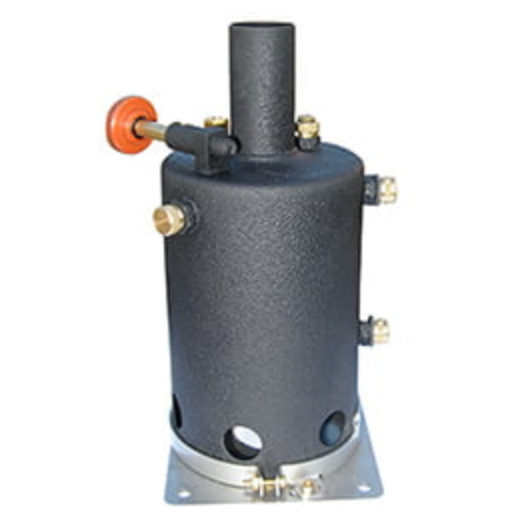

Mamod Marine Engines - Vertical Boiler

Mamod Marine Engines - Vertical Boiler

Regular price £181.50 GBP
Regular price Sale price £181.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
For use with our Marine Steam Engines, comes with a steam valve with a 1/4 BSF male thread

Tank Specifications

  • Boiler diameter 70mm
  • Boiler height 111mm
  • Total height 145mm
  • Boiler volume 210ml
  • 1 boss suitable for a pressure gauge banjo (optional) 1.4 x BSF
  • 2 bosses suitable for a sight glass assembly (optional) 1/4 x 40 TPI
  • Goodall top-up valve
  • Brass construction
  • Base plate 78 x 94 mm stainless steel
  • We recommend using it with our matched gas burner and gas.

Burner Specification

  • Diameter 34mm
  • Height 34mm
  • Overall 66mm

The ceramic burner comes with 1/8″ copper pipe approximately 200mm long, knurled tank connector and “o” rings, hex jet holder with hex nut and olive and a No5 jet (0.009″)

Please review the pressure systems safety regulations here
